Charging station, charging column
- Weather-resistant
- Charging process via cable or induction
- Convenient billing
Administrative building in Southern Germany
- Ventilation tower as welded construction
- Louvres protruding over standpipe
- With base flange and rain collar
- Pipe diameter: DN= 1,700 mm
- Louvre outer diameter: D= 2,046 mm
- Total height: H= 4,610 mm
- Standpipe height: h1= 3,000 mm
- Wall thickness: s= 2.0 mm
- Material: Stainless steel 1.4301 (V2A)
- Surface: Matt ground (K240)
- Roof shape: Pitched roof 15°
- Single louvre height: h2= 170 mm
- Number of louvres: n= 8 pcs.
- Louvre inclination angle: 45°
Office building, Dresden
- 2 exhaust towers with wall mounts
- Volume flow: 27,500 m3/h (per tower)
- Louvre shape: protruding over standpipe
- Roof shape: Flat roof
- Nominal size: DN 560 mm
- Construction height: 7.8 m
- Connection: Internal plug connection
- Material: Stainless steel 1.4571
- Surface: Bright

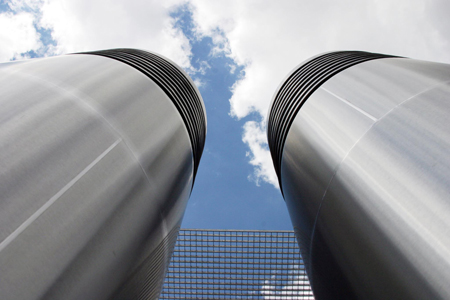

Hospital exhaust towers, Leipzig
- 2 exhaust towers with wall mounts
- Volume flow: 9,500 m3/h (per tower)
- Louvre shape: flush with standpipe and splash water board
- Roof shape: Flat roof
- Nominal size: DN 800 mm
- Construction height: 16.5 m
- Connection: 5x 3 m pipe segments with visible round seam
- Welded and 4x internal plug connection
- Material: Stainless steel 1.4301
- Surface: matte, ground (grain 180)
Gymnasium
- Supply air tower free-standing, in segment construction
- Volume flow 13,000 m3/h
- Louvre shape: flush with standpipe
- Roof shape: Flat roof
- Nominal size: DN 1,050
- Height: 4.55 m
- Connection: Internal plug connection with safety pin
- Material: Stainless steel 1.4301
- Surface: matte, ground (grain 180)
Biogas plant in Northern Germany
- Schau- und Vorführanlage in Rendsburg
Brockmann, fin block for glass production
Austrian Federal Railways Railjet, Siemens Vienna
Waste sorting plant in Berlin

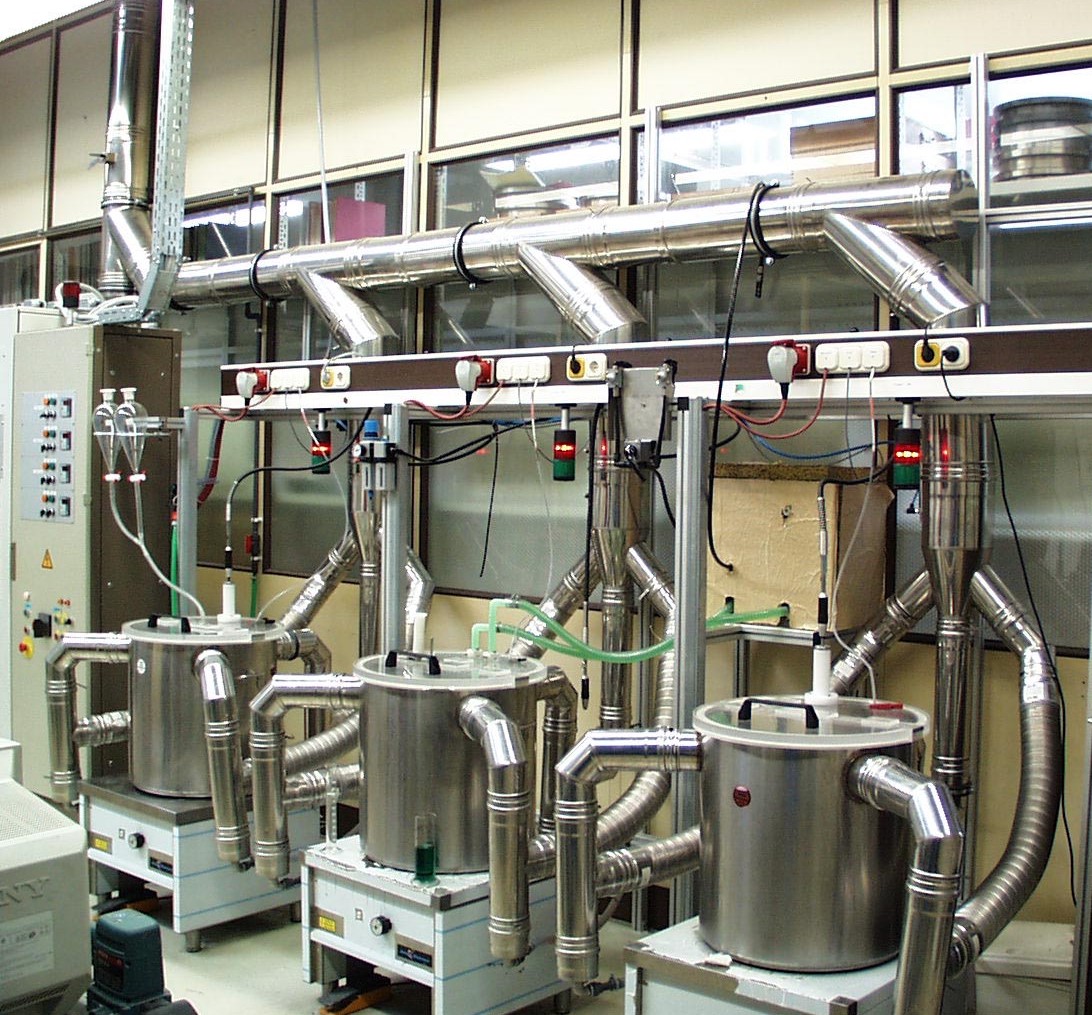

Air system for gear technology company in Coburg
Municipal drainage operations in Cologne
Residential ventilation tower for customers in Southern Germany
